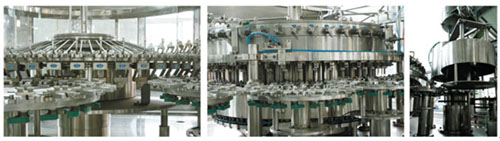

DCGN series carbonated soft drink filling machine
| Art. No. ： | |
| Product's packing ： | |
| Certificate approvaled ： | |
| Trade Terms ： | |EXW|FOB| |
| Payment Terms ： | |L/C|T/T| |
| MOQ ： | 1set |
Product Info
General description
The series of products are the integrated rinsing/filling/capping machines; suitable for produce various kinds of PET bottle carbonated soft drink
Technical parameters
|
Model (DCGN) |
16-12-6 | 18-18-6 | 24-24-8 | 32-32-10 | 40-40-12 | 50-50-15 | 60-60-15 | 72-72-18 | 80-80-20 | ||
|
Production capacity (600ml) (B/H) |
3000 | 5000 | 8000 | 12000 | 15000 | 18000 | 24000 | 30000 | 36000 | ||
| Filling accuracy | ≤±5mm | ||||||||||
| Filling pressure | ≤0.4 | ||||||||||
| PET bottle size (mm) | Bottle diameter φ50-φ92 Height 150-320 | ||||||||||
|
Cap shape |
Plastic cap | ||||||||||
| Rinsing with water pressure (Mpa) | 0.2-0.25 | ||||||||||
| Wash bottles water consumption (kg/h) | 800 | 1600 | 2500 | 3500 | 4000 | 4500 | 5000 | 65000 | 7000 | ||
|
Air pressure (Mpa) |
0.6 | ||||||||||
|
Air consumption (m3/min) |
0.2 | 0.2 | 0.25 | 0.3 | 0.3 | 0.3 | 0.4 | 0.5 | 0.5 | ||
|
Motor power (kw) |
2.57 | 3.37 | 4.37 | 5.87 | 6 | 7.87 | 11.37 | 15.37 | 16 | ||
|
Weight (kg) |
4500 | 5500 | 7000 | 8000 | 9000 | 10500 | 14000 | 16500 | 18000 | ||
|
Dimension (L*W*H)(mm) |
2200*1700*2700 | 2500*2100*2700 | 2800*2400*2700 | 4000*2550*2850 | 4400*2900*2850 | 5350*3500*2850 | 5350*5000*2850 | 7100*6250*3000 | 7700*6750*3000 | ||
