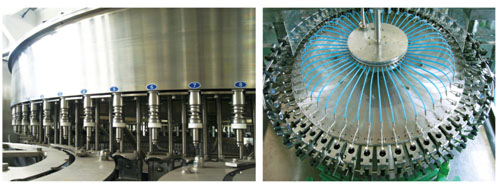

CGN series PET bottle water filling machine
| Art. No. ： | |
| Product's packing ： | |
| Certificate approvaled ： | |
| Trade Terms ： | |EXW|FOB| |
| Payment Terms ： | |L/C|T/T| |
| MOQ ： | 1set |
Product Info
Technical parameters
|
Model (CGN) |
16-12-6 | 18-18-6 | 24-24-8 | 32-32-10 | 40-40-12 | 50-50-15 | 60-60-15 | 72-72-18 | 80-80-20 |
|
Production capacity (600ml) (bph) |
3000 | 6000 | 10000 | 14000 | 18000 | 24000 | 30000 | 36000 | 40000 |
| Filling accuracy | ≤±5mm | ||||||||
| PET bottle size (mm) | Bottle diameter φ50-φ92 Height 150-320 | ||||||||
|
Cap shape |
Plastic cap | ||||||||
| Rinsing with water pressure (Mpa) | 0.2-0.25 | ||||||||
| Wash bottles water consumption (kg/h) | 800 | 1600 | 2500 | 3500 | 4000 | 4500 | 6000 | 7500 | 8000 |
| Air pressure (Mpa) | 0.4 | ||||||||
| Air consumption (m3/min) (0.6Mpa) | 0.2 | 0.2 | 0.25 | 0.3 | 0.3 | 0.3 | 0.4 | 0.5 | 0.5 |
| Motor power (kw) | 2.57 | 3.37 | 4.37 | 5.87 | 5.87 | 7.87 | 11.37 | 15.37 | 15.37 |
| Weight (kg) | 3500 | 4500 | 6000 | 7000 | 8000 | 9500 | 13000 | 15000 | 16000 |
| Dimension (L*W*H) (mm) | 2200×1600×2700 | 2500×2000×2700 | 2800×2300×2700 | 4000×2450×2850 | 4400×2800×2850 | 5350×3400×2850 | 5000×5000×3000 | 7100×6250×3000 | 7700×6750×3000 |
